Using TCEP as a Reducing Agent for DNA Immobilization

Goal:

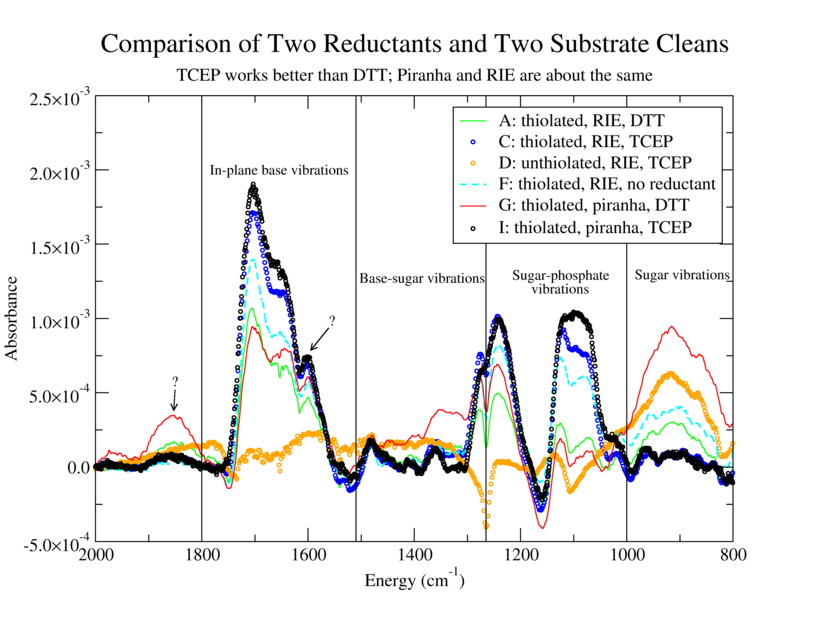

Establish reliable and reproducible method to attach thiolated DNA to Au. Confirm DNA attachment using FTIR and AFM. Compare reduction by DTT (Reductacryl) and TCEP and compare substrate cleaning via RIE and Piranha etch.

References:

• "Surface properties of platinum thin films as a function of plasma treatment conditions," Z Li, P Beck, D Ohlberg, DR Stewart, R Williams - Surface Science(Netherlands), 2003 (RIE recipe)
• "Surface Structure and Coverage of an Oligonucleotide Probe Tethered onto a Gold Substrate," E. Huang et al., Langmuir 17, 1215 (2001) (source of TE/NaCl buffer recipe and use of Reductacryl).
• "Quantitative Analysis and Characterization of DNA Immobilized on Gold," NRL-NIST collaboration, J. AM. CHEM. SOC. 2003, 125, 5219-5226 (TE:MgCl2 buffer)
• "Use of immobilized PCR primers to generate covalently immobilized DNAs for in vitro transcription/translation reactions," Joanne D. Andreadis and Linda A. Chrisey, Nucleic Acids Research, 2000, Vol. 28, No. 2 Ee5. "Reactions containing 25 µl thiolated amplicon, 1.5 mg beads in HEPES buffer (10 mM HEPES, 1 mM EDTA, pH 6.5), and 200 µM tris-(2-carboxyethyl)phosphine (TCEP) (Molecular Probes, Eugene, OR) were agitated for 2 h at 25 °C. TCEP rapidly reduces the disulfide modifier on the amplicon to yield free thiol that can react with iodoacetamide or maleimide groups on the crosslinker-modified beads). The beads were then washed with dH2O several times, followed by incubation in 1 M NaCl for 15 h to remove non-covalently attached DNA."
• IDT website: "add the TCEP in 100fold excess (ie; 30mM TCEP to 300uM oligo) and let it set for a couple of hours at room temp to reduce the oligo. You do not need to worry about removing the TCEP from your oligo before using it in your reaction."

Samples produced:

Slide 1: hypothetical best results

1. K-20 in TE: MgCl2 with Reductacryl, filtered, RIE.

2. K-20 in TE: MgCl2 with TCEP, RIE.

Slide 2: RIE controls

3. K-20 no linker in TE:NaCl with TCEP, RIE.

4. K-20 in TE:MgCl2 with no reducing agent, RIE.

Slide 3: Piranha etch

5. K-20 in TE: MgCl2 with Reductacryl, filtered, Piranha.

K-20 in TE: MgCl2 with TCEP, Piranha.

Supplies needed:

• K-20 in TE:MgCl2 1 µM solution, 5x200 µL aliquots;
• K-20 no-linker in TE:NaCl 1 µM solution, 3x80 µL aliquots;
• Reductacryl, 2x75 µg;
• TCEP 8 mM solution, 1x 20 µL aliquot;
• 6x 114-sized teflon o-rings (201 mm2 area);
• TE/MgCl2 buffer;
• 3x unpatterned Au/Cr glass slides;
• 3x Piranha-cleaned top glass plates;
• 6 114-sized teflon o-rings;
• 1 small syringe;
• 2x 0.2 µm cellulose syringe filter;
• parafilm;

• 2x hypodermic needle.

Procedure

Morning:

1. Bring 2x 200 µL aliquots of K-20 in TE:MgCl2 and 3x 80 µL aliquots of K-20 no linker in TE:NaCl to room temperature. Thaw a 20 µL tube of 8 mM TCEP. Pipet the 3 aliquots of K-20 no linker into 1 tube. Add 3 µL of TCEP solution to each of the 3 remaining tubes, wrap in foil and rock vigorously (speed 8) for 2 hours. These tubes are for cells No. 2, 3 and 6.

2. Piranha-clean top glass (3 mins each), rinse thoroughly in DI water (5 mins) and blow-dry. Sonicate teflon o-rings in acetone and IPA, rinse in water and blow-dry. Move other DNA aliquots (3x 200 µL TE:MgCl2) from freezer to refrigerator. These tubes are for 1, 4 and 5.

Afternoon:

3. Measure 2 units of 62 µg each of Reductacryl and place one unit in the bottom of each of two µfuge tubes (see calculation.) Label these tubes cell 1 and 5.

4. "Descum" two Au/Cr/glass slides and the three top plates using oxygen and argon plasmas in the RIE with hipress2.prc. Move other DNA aliquots from refrigerator to bench.

5. While the RIE is pumping down, vortex and spin-down DNA-containing tubes for cells No. 1 and 5 before dispensing into tubes with Reductacryl. Rock vigorously (speed 8) for 15 minutes.

6. Place the clean Au slides 1 and 2 in the test jig and assemble the teflon gaskets and glass plates on top. Mark o-ring positions on glass slide with diamond scribe and label them. Dispense solutions of cells No. 2, 3 and 4 into the cells.

7. Vortex and spin-down µfuge tube 1 before dispensing. Withdraw the solution A using a syringe and dispense through a 0.2 µm cellulose syringe filter and hypodermic needle into compartment 1.

8. Piranha-clean one slide (3 mins), rinse thoroughly (5 mins) and blow-dry. Assemble slide 3. Add solution 6. Filter solution 5 as for 1 and add to remaining cell.

9. Seal all compartments with Parafilm. Let sit overnight in a darkened, N2-backfilled cabinet.

Next day:

10. Remove the parafilm, top glass and gaskets. Soak the top glass and gaskets in ddH2O. Wash the slides twice in TE:MgCl2 buffer in a pipet tip container for 10 minutes and immerse in DI water. Blow-dry one at a time as FTIR becomes available.
